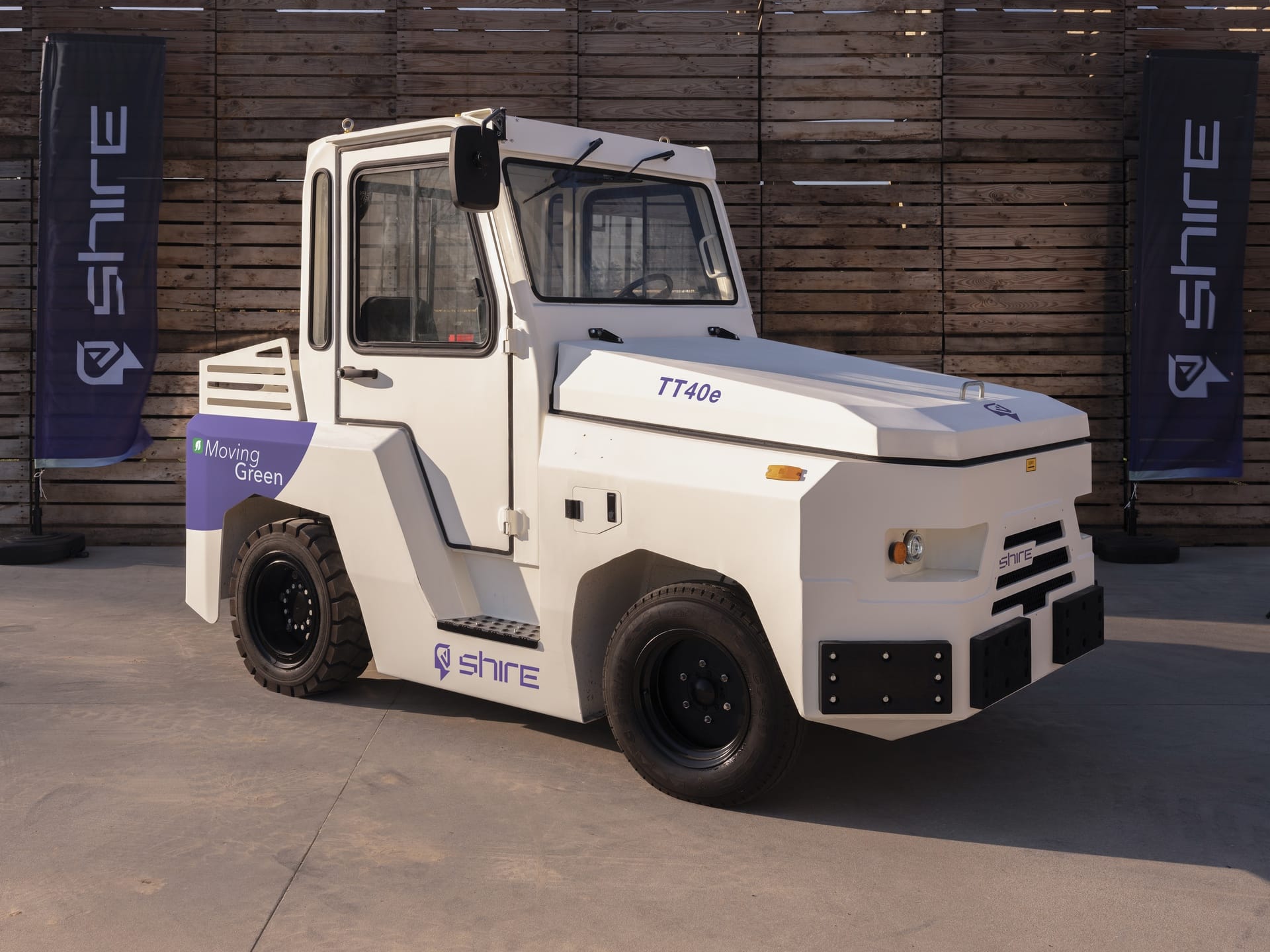

TT40e LITHIUM BATTERY ELECTRIC TRACTOR

A true
workhorse

A true workhorse
with outstanding performance

This powerful and highly maneuverable machine is built to deliver exceptional performance. With extended autonomy provided by the enhanced battery pack, it ensures smooth and efficient operations for longer periods, minimizing down time. Equipped with advanced control systems, it meets the highest safety standards while offering full connectivity through integrated cloud technology. By connecting all machine parameters to the cloud, customers can streamline operations, monitor performance, and benefit from SHIRE engineers’ remote diagnostics support.

To maximize operational time, this tow tractor is designed with a focus on reliability and efficiency. Additionally, the advanced Battery Self-Extinguishing System (BSES) enhances safety during operations and storage, providing optimal protection for users and equipment.

Battery design

This entry-level tow tractor is powered by a lithium-ion battery, selected for its numerous practical advantages. Lithium-ion technology offers a higher energy density, longer lifespan, faster charging, and is completely maintenance-free, making it a superior alternative to lead-acid batteries. For operations where maximizing uptime is critical, lithium-ion tow tractors provide significant benefits over their lead-acid counterparts.

Intuitive operational design

The cabin is designed with intuitive operation in mind, minimizing the training required to prepare operators for use. It features a large operator display that not only provides essential machine information but also serves as a central interface for operating the equipment, ensuring ease of use and efficiency.

IoT integration for operational improvement

IoT integration allows customers to monitor the technical performance and operational status of the machines in real time.

Remote diagnostics

Our machine is equipped with remote connectivity, enabling SHIRE engineers to access the system remotely. This feature allows for efficient technical support and seamless software updates, ensuring optimal performance and minimal downtime.

Tech specs.

TT40e - Mertens Electrification & Control Systems | M-ECS
Power Data
Learn more
  • Maximum drawbar pull
    40 kN
  • Rated drawbar pull
    11 kN
  • Maximum trailing load
    50,000 kg
  • Maximum speed
    30 km/h
  • Maximum gradient
    35%
TT40e - Mertens Electrification & Control Systems | M-ECS
Geometry
Learn more
  • Minimum turning radius
    4000 mm
  • Overall length
    3650 mm
  • Overall width
    1650 mm
  • Overall height
    2200 mm
  • Front track width
    1390 mm
  • Rear track width
    1410 mm
  • Wheelbase
    1900 mm
  • Ground clearance
    150 mm
TT40e - Mertens Electrification & Control Systems | M-ECS
Weight
Learn more
  • Kerb weight (incl. battery)
    5320 kg
TT40e - Mertens Electrification & Control Systems | M-ECS
Tyres
Learn more
  • Tyres front
    185R15
  • Tyres rear
    28Ă—9-15-15
TT40e - Mertens Electrification & Control Systems | M-ECS
Powertrain
Learn more
  • Power
    55 kW
  • Braking system
    Electro-hydraulic braking system
  • Steering system
    Electric assisted steering system
TT40e - Mertens Electrification & Control Systems | M-ECS
Battery
Learn more
  • Voltage (option 1)
    405 V
  • Voltage (option 2)
    611 V
  • Capacity (option 1)
    70 kWh
  • Capacity (option 2)
    140 kWh
  • Charging (option 1)
    80 kW
  • Charging (option 2)
    160 kW
  • Battery self-extinguishing system
    HFC-236fa
TT40e - Mertens Electrification & Control Systems | M-ECS
Cabin
Learn more
  • Conditioning
    Electric heating
  • Cooling
    Active cooling system
TT40e - Mertens Electrification & Control Systems | M-ECS
Certification & Safety
Learn more
  • EC Declaration of conformity for machinery
    TT40e (341.52 KB)
