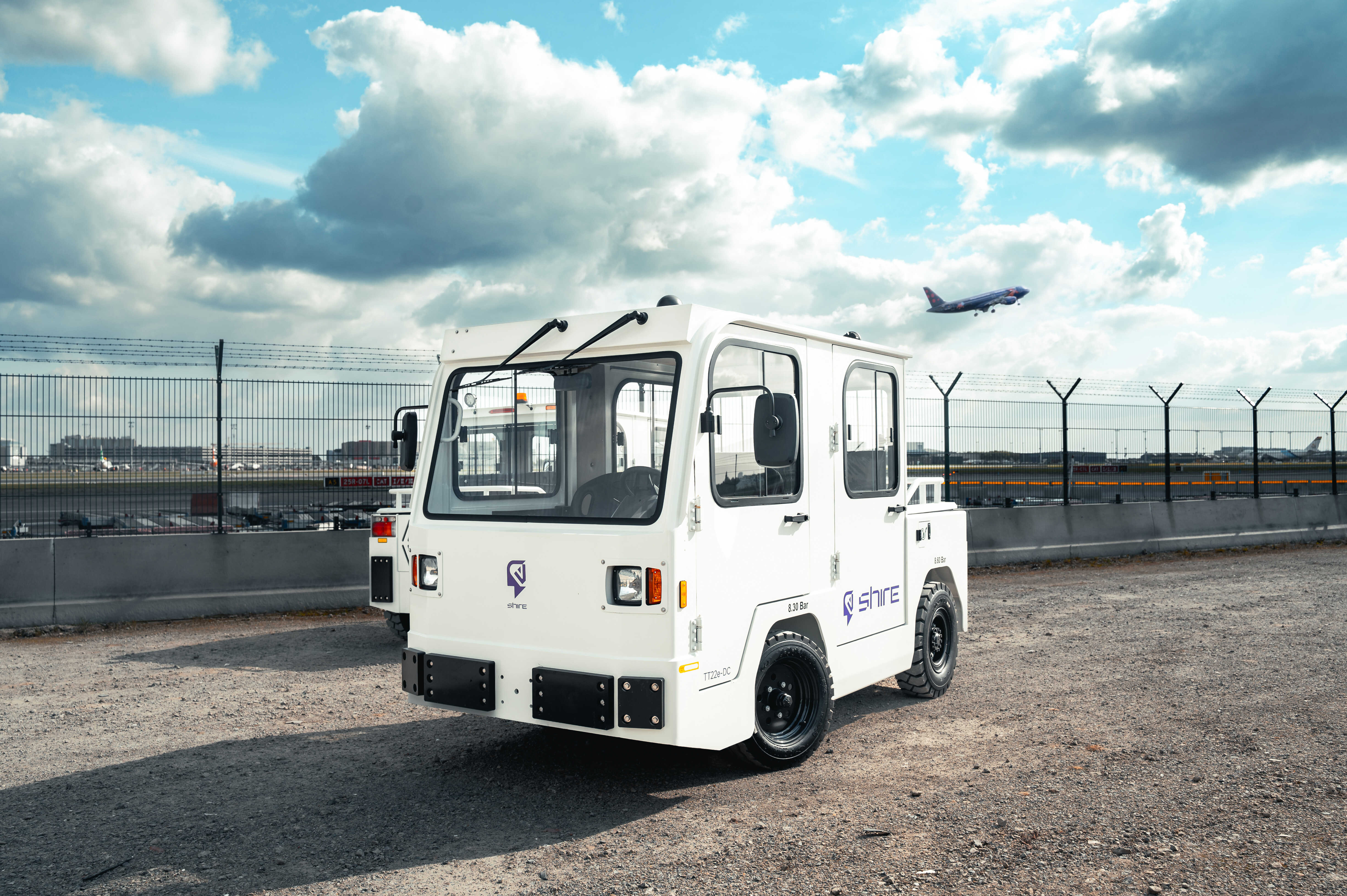

TT22e - Double Cabin Electric Tractor

Efficient and Multifunctional


The 5-seater electric
tow tractor

The 5-seater version of the SHIRE TT22e features an extended cabin designed to accommodate additional personnel, with a forward-facing rear bench seat. This configuration makes it ideal for ground-handling operations where team transport is essential.

Thanks to the integration of a lighter 80V lithium-ion battery system, the 5-seater version delivers increased passenger capacity while maintaining a vehicle weight comparable to the 2-seater variant.

Most technical specifications and overall dimensions remain unchanged, with lithium-ion technology delivering faster charging, reduced maintenance, and improved energy density.

Double cabin versatility

This vehicle features a spacious forward-facing dual cabin with seating for up to five passengers. The forward-facing design improves passenger comfort by reducing motion discomfort, while the multifunctional setup enables both crew transportation and towing of essential ground support equipment such as GPUs, passenger stairs, and other airside assets.

Intuitive operational design

The cabin is designed with intuitive operation in mind, minimizing the training required to prepare operators for use. It features a large operator display that not only provides essential machine information but also serves as a central interface for operating the equipment, ensuring ease of use and efficiency.

IoT integration for operational improvement

IoT integration allows customers to monitor the technical performance and operational status of the machines in real time.

Remote diagnostics

Our machine is equipped with remote connectivity, enabling SHIRE engineers to access the system remotely. This feature allows for efficient technical support and seamless software updates, ensuring optimal performance and minimal downtime.

Tech specs.

TT22e-DC - Mertens Electrification & Control Systems | M-ECS
Power Data
Learn more
  • Drawbar pull
    22 kN
  • Maximum trailing load
    25,000 kg
  • Maximum speed
    25 km/h
  • Maximum gradient
    30%
TT22e-DC - Mertens Electrification & Control Systems | M-ECS
Geometry
Learn more
  • Minimum turning radius
    3250 mm
  • Overall length
    3400 mm
  • Overall width
    1450 mm
  • Overall height
    1980 mm
  • Front track width
    1230 mm
  • Rear track width
    1210 mm
  • Wheelbase
    1625 mm
  • Ground clearance
    130 mm
  • Passenger Capacity
    5
TT22e-DC - Mertens Electrification & Control Systems | M-ECS
Tow hook
Learn more
  • Customizable
TT22e-DC - Mertens Electrification & Control Systems | M-ECS
Weight
Learn more
  • Kerb weight (incl. battery)
    4,500 kg
TT22e-DC - Mertens Electrification & Control Systems | M-ECS
Tyres
Learn more
  • Tyres front
    185R14
  • Tyres rear
    7.00-12-12PR
TT22e-DC - Mertens Electrification & Control Systems | M-ECS
Powertrain
Learn more
  • Power
    25 kW
  • Braking system
    Electro-hydraulic braking system
  • Steering system
    Electro-hydraulic steering system
TT22e-DC - Mertens Electrification & Control Systems | M-ECS
Battery
Learn more
  • Voltage
    80 V
  • Capacity
    840 Ah
TT22e-DC - Mertens Electrification & Control Systems | M-ECS
Cabin
Learn more
  • Conditioning
    Electric heating
TT22e-DC - Mertens Electrification & Control Systems | M-ECS
Certification & Safety
Learn more
